Descripción

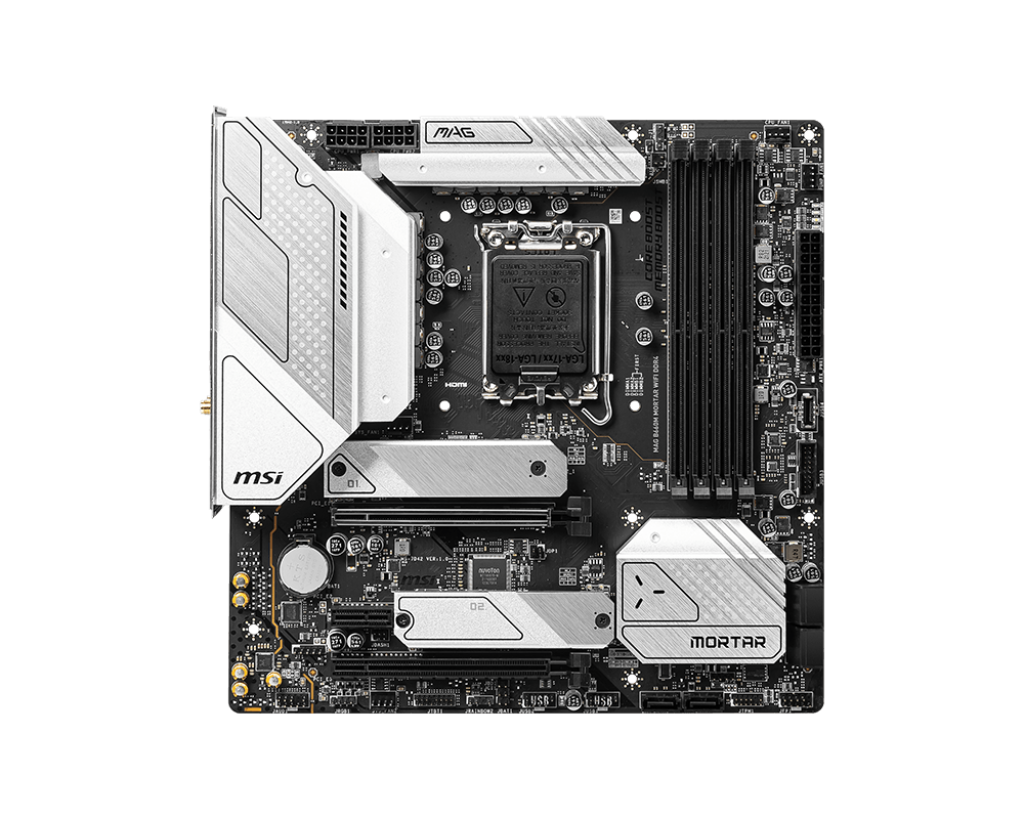

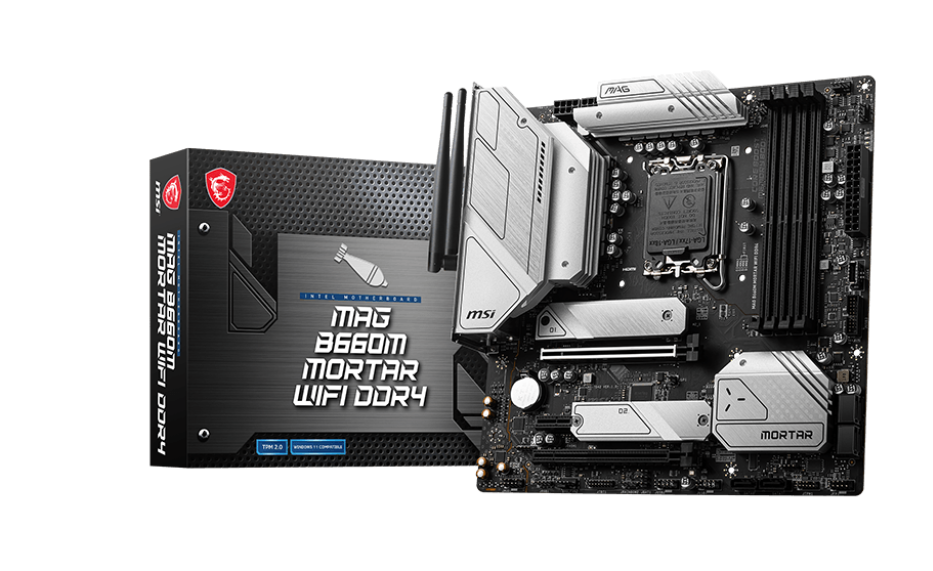

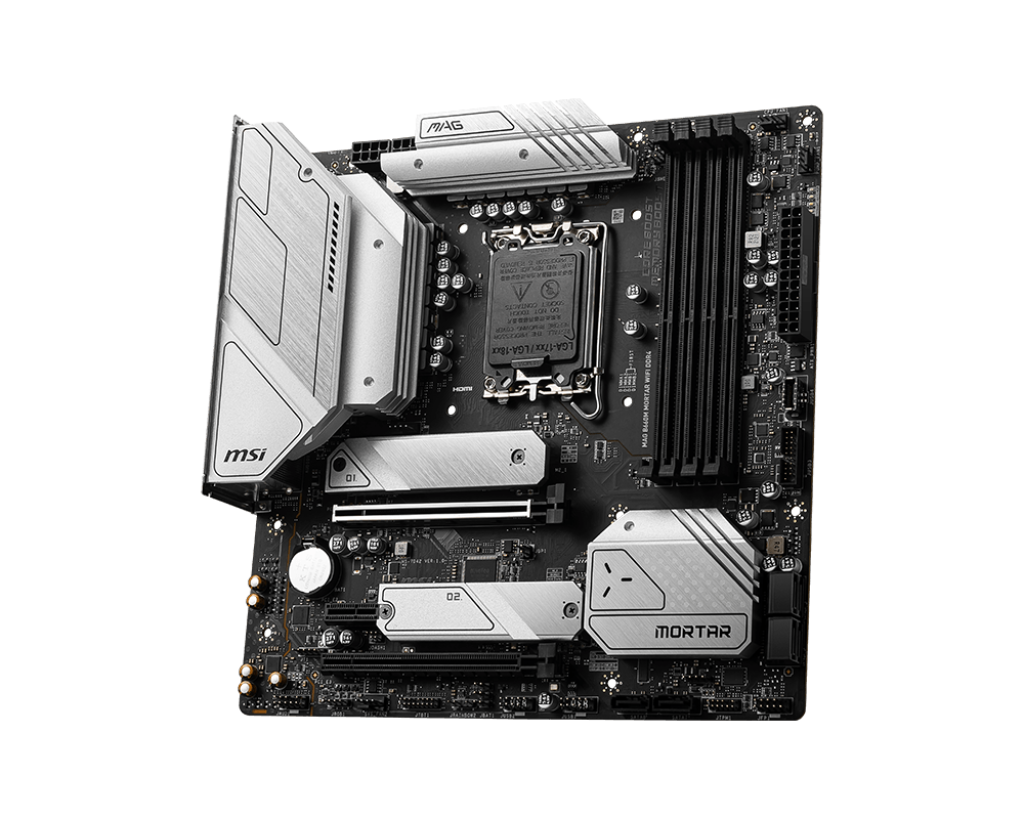

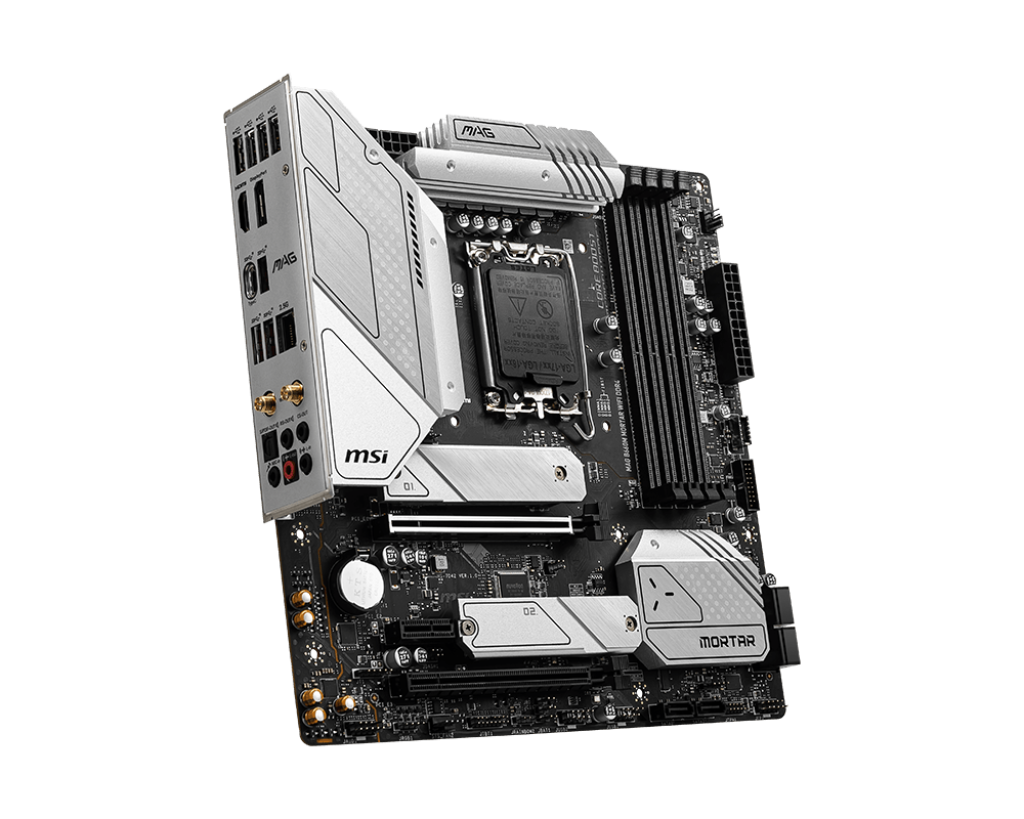

MSI B660M MORTAR WIFI
MSI MAG B660M MORTAR MSI DDR4 WIFI
SOPORTE
- Supports 12th/ 13th Gen Intel®Core™, Pentium®Gold and Celeron®processors
- Processor socket LGA1700
MEMORIA
- 4x DDR4 memory slots, support up to 128GB1
- Supports 1R 2133/ 2666/ 3200 MHz
- Max overclocking frequency:
- 1DPC 1R Max speed up to 5333+ MHz
- 1DPC 2R Max speed up to 4000+ MHz
- 2DPC 1R Max speed up to 4000+ MHz
- 2DPC 2R Max speed up to 3600+ MHz
- Supports Dual-Channel mode
- Supports Intel® (XMP)
ALMACENAMIENTO
- 4x SATA 6Gb/s ports (SATA5~8, from B660 Chipset)1
- 2x SATA 6Gb/s ports (SATA_A & SATA_B, from ASMedia ASM1061)
- 2x M.2 slots (Key M)
- M2_1 slot (From CPU)
- Supports PCIe 4.0 x4
- M2_2 slot (From B660 Chipset)1
- Supports PCIe 4.0 x4
- Supports SATA 6Gb/s
- Supports Intel® Optane™ Memory
- M2_1 slot (From CPU)
USB SUPPORT
Intel® B660 Chipset
2x USB 3.2 Gen 1 5Gbps ports available through the internal connector
4x USB 2.0 ports on the back panelUSB Hub-GL3590
3x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel
WIRELESS LAN & BLUETOOTH®
Intel® Wi-Fi 6
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ up to 2.4Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.2
